Special Offer: 3P TE90-540-W32-10 Milling Cutter for CZK 1 with the Purchase of 50 Inserts

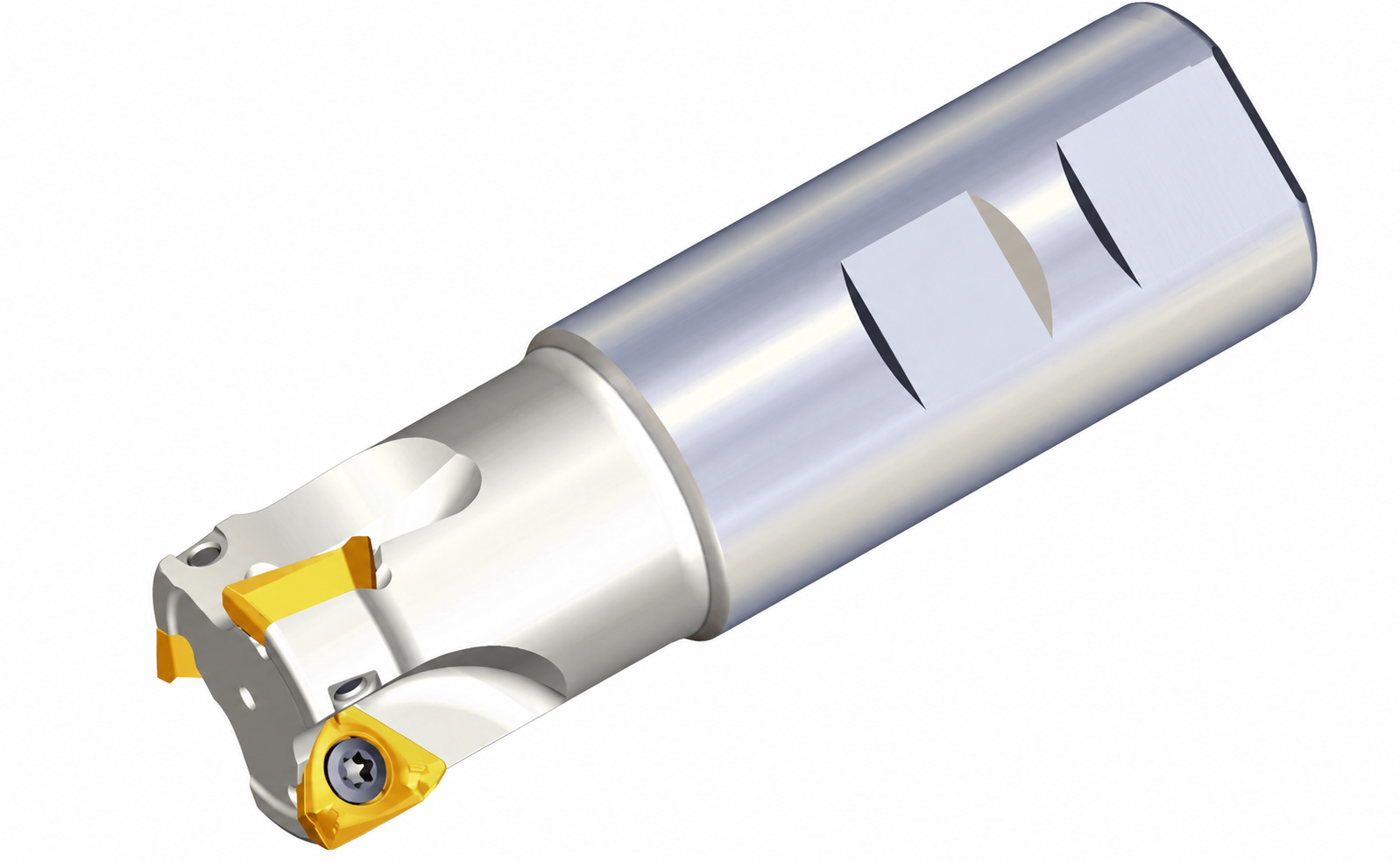

TaeguTec indexable end mill for milling square shoulders, faces and slots. Also suitable for ramping and helical interpolation.

• Cutting diameter: 40 mm
• Number of cutting positions: 5
• Shank: Weldon Ø32 mm
• Overall length: 115 mm
• Usable length: 40 mm
• Maximum depth of cut: 7 mm
• Cutting edge angle: 90°
• Reference insert: 3PKT 100408R-M

We will be happy to help you select the right inserts and cutting parameters for your application.
